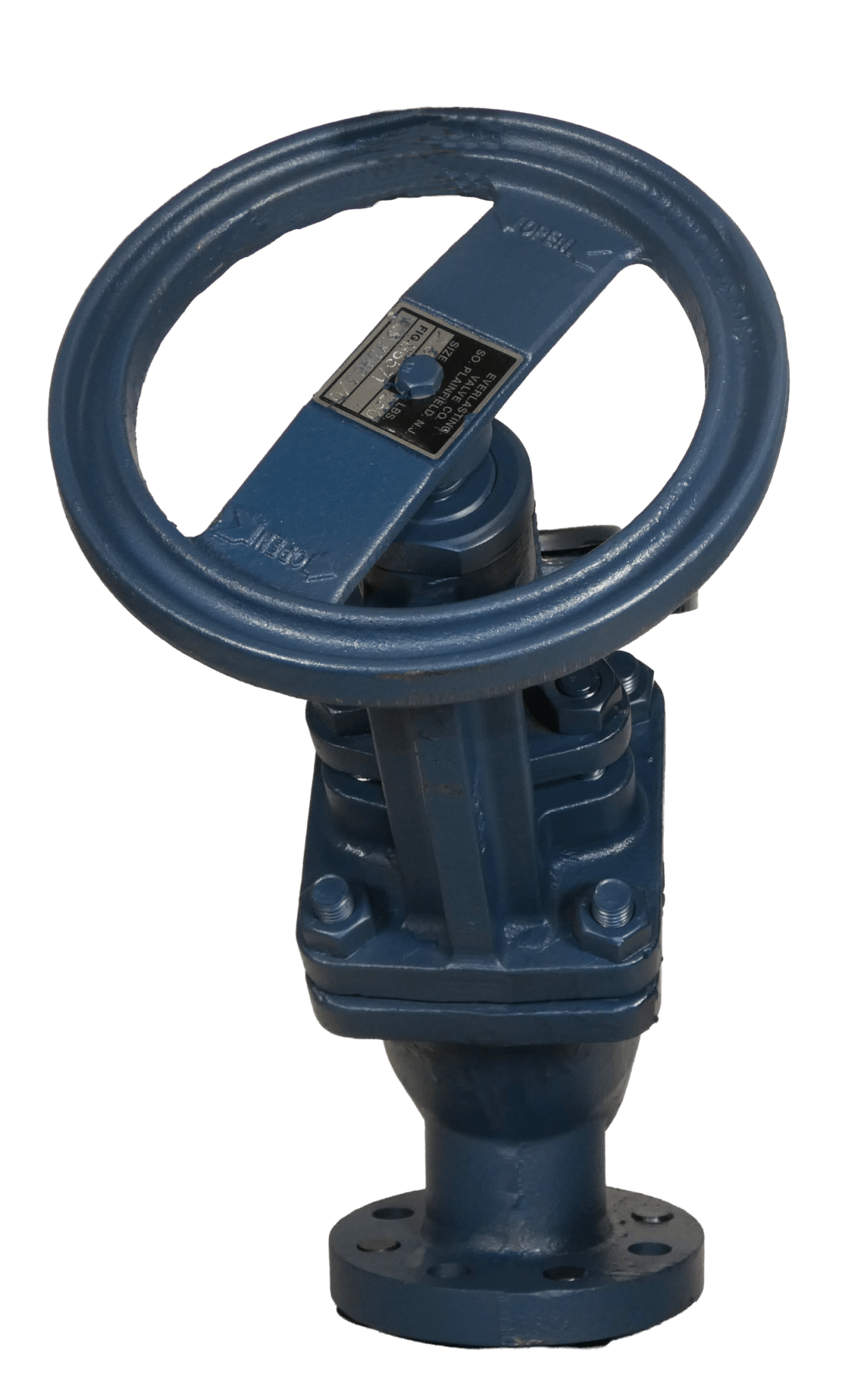

Everlasting B6661-1.50 Slow Opening Angle Blowdown Valve Overview
The Everlasting B6661-1.50 Slow Opening Angle Blowdown Valve is a 1-1/2-inch carbon steel valve designed for controlled bottom blowdown in industrial steam boiler systems.
The Model B6661 features an angle-pattern body, flanged end connections, and controlled slow-opening operation for gradual discharge of boiler water containing sludge, scale, sediment, and other accumulated impurities. The B6661-1.50 is ANSI Class 300 and rated for a maximum blow-off pressure of 490 PSI according to ASME Code.
With a 14.25-inch face-to-face dimension and carbon steel construction, this valve is suited for severe-service boiler maintenance, replacement, and high-temperature blowdown applications requiring a flanged angle-pattern valve.
