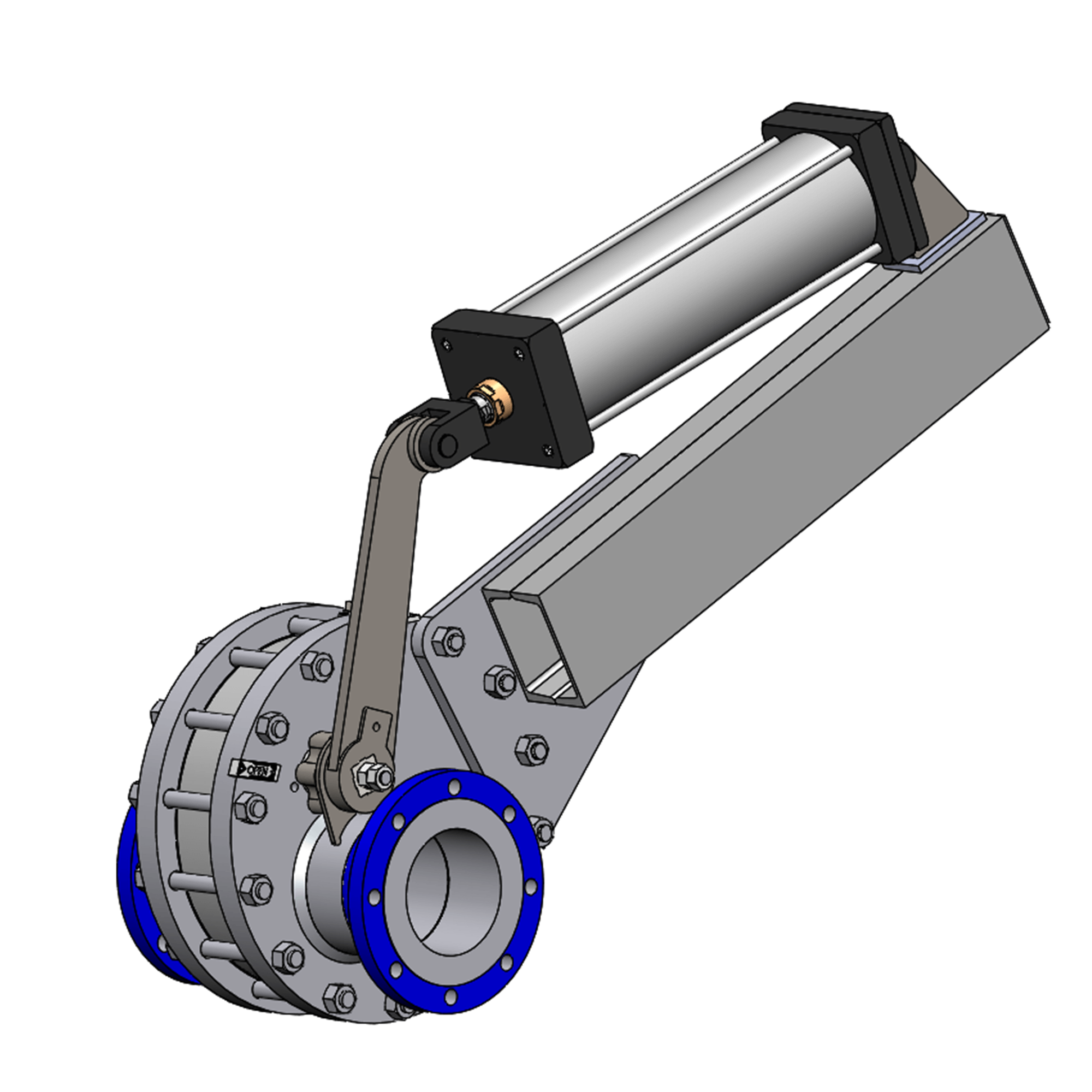

Everlasting PRO-6.00 6″ Process Isolation Valve

Everlasting PRO-6.00 6 inch process isolation valve

Part #: PRO-6.00
Model: PRO-6.00
Manufacturer: Everlasting Valve Company
Category: Process Valves
Key Specifications

Part Number: PRO-6.00
Model: PRO-6.00
Manufacturer: Everlasting Valve Company
Product Type: Process Isolation Valve
Series: PRO
Pipe Size: 6″
Valve Type: Isolation
Face-to-Face: 20.5″
ANSI Valve Class: 125 / 150 / 250 / 300 / 400 / 600 / 900 / Other
Service: Severe-Service Industrial Process
Media: Slurries / Dry Powders / Abrasive Media / Solids-Laden Fluids
Design: Rotating Disc

Overview

Everlasting PRO-6.00 6-inch severe-service process isolation valve with rotating-disc design for slurries, abrasive media, dry powders and solids-laden process streams.

Technical Specifications

Product Type: Process Isolation Valve
Model: PRO-6.00
Series: PRO
Pipe Size: 6″
Valve Type: Isolation
Face-to-Face: 20.5″
ANSI Valve Class Options: 125 / 150 / 250 / 300 / 400 / 600 / 900 / Other
Design Technology: Rotating Disc
Disc Action: Self-Wiping
Seating Design: Precision-Lapped
Seal Design: Self-Lapping
Media: Slurries / Dry Powders / Abrasive Media / Solids-Laden Fluids
Service: Severe-Service Process Isolation
Typical Applications: Chemical Processing / Petrochemical / Pneumatic Conveying / Slurry Systems / Reactor Service

Everlasting PRO-6.00 Process Isolation Valve

The Everlasting PRO-6.00 Process Isolation Valve is a 6-inch severe-service industrial valve designed for demanding applications involving slurries, abrasive media, dry powders, and solids-laden process streams.

The PRO-6.00 uses Everlasting’s rotating-disc design with self-wiping action to help resist buildup, fouling, and material accumulation around the sealing surfaces. Precision-lapped disc and seat surfaces provide reliable metal-seated shutoff while the self-lapping design is engineered to maintain sealing performance through repeated operation.

With a 20.5-inch face-to-face dimension and multiple ANSI pressure-class configurations available, the Everlasting PRO-6.00 is suited for process isolation applications in chemical processing, petrochemical facilities, pneumatic conveying, slurry systems, reactor service, and other severe industrial environments.
