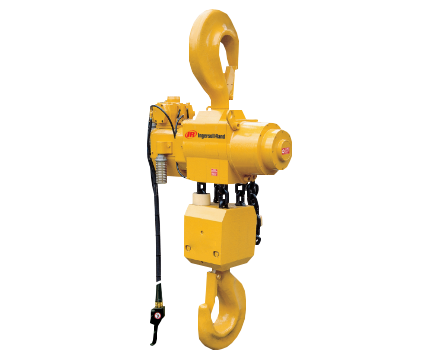

Ingersoll Rand LC2A015SI 1.5 Ton Liftchain Air Hoist

Ingersoll Rand LC2A015SI 1.5 Ton Liftchain Air Hoist

Part #: LC2A015SI
Model: LC2A015SI
Manufacturer: Ingersoll Rand
Category: Air Hoists
Key Specifications

Part Number: LC2A015SI
Model: LC2A015SI
Manufacturer: Ingersoll Rand
Product Type: Pneumatic Air Chain Hoist
Series: Liftchain
Lifting Capacity: 1.5 Metric Tons
Reeves of Chain: 1
Power Source: Compressed Air
Hook-Mount Headroom: 409 mm (16.1 in)
Hoist Weight with 3 m Chain: 38 kg (84 lb)
Weight per Additional Meter of Lift: 1.5 kg (3.3 lb)
Industrial Trolley Headroom: 450 mm (18 in)
Industrial Trolley Flange Adjustment: 83–152 mm (3.3–6 in)
Industrial Wide Beam Flange Adjustment: 152–305 mm (6–12 in)
Oil & Gas Trolley Headroom: 480 mm (18.9 in)
Oil & Gas Trolley Flange Adjustment: 80–200 mm (3.2–7.9 in)
Oil & Gas Trolley Weight: 57 kg (126 lb)
Low Profile Headroom: 275 mm (10.8 in)
Low Profile Flange Adjustment: 81–310 mm (3.2–12.2 in)
Operating Type: Pneumatic
Application: Oil & Gas / Offshore / Marine / Industrial
Availability: Contact for Availability

Overview

Ingersoll Rand LC2A015SI 1.5-ton pneumatic Liftchain air hoist for oil and gas, offshore, marine and demanding industrial lifting applications.

Technical Specifications

Product Type: Pneumatic Air Chain Hoist
Manufacturer: Ingersoll Rand
Model: LC2A015SI
Series: Liftchain
Rated Capacity: 1.5 Metric Tons
Reeves of Chain: 1
Power Source: Compressed Air
Motor Power: 3.5 hp
Working Air Pressure: 6.3 bar (90 psi)
Working Pressure Range: 5–7 bar (70–100 psi)
Lifting Speed at Rated Load: 6.2 m/min
Lifting Speed at No Load: 11.0 m/min
Lowering Speed at Rated Load: 8.5 m/min
Air Consumption at Rated Load: 4.0 m³/min
Air Inlet Size: 3/4 in BSP
Sound Pressure Level: 78 dB(A)
Hook-Mount Headroom: 409 mm (16.1 in)
Hoist Weight with 3 m Chain: 38 kg (84 lb)
Chain Size: 8 x 24 mm
Mechanical Classification: FEM 1 Bm / ISO M3
Industrial Trolley Headroom: 450 mm (18 in)
Industrial Trolley Flange Adjustment: 83–152 mm (3.3–6 in)
Industrial Wide Beam Flange Adjustment: 152–305 mm (6–12 in)
Oil & Gas Trolley Headroom: 480 mm (18.9 in)
Oil & Gas Trolley Flange Adjustment: 80–200 mm (3.2–7.9 in)
Oil & Gas Trolley Weight: 57 kg (126 lb)
Low Profile Headroom: 275 mm (10.8 in)
Low Profile Flange Adjustment: 81–310 mm (3.2–12.2 in)
Speed Control: Variable-Speed Pneumatic Operation
Typical Applications: Oil & Gas / Offshore / Marine / Refineries / Petrochemical / Industrial
Availability: Contact for Availability

Ingersoll Rand LC2A015SI 1.5 Ton Liftchain Air Hoist

The Ingersoll Rand LC2A015SI Liftchain Air Hoist is a compact pneumatic chain hoist designed for demanding industrial lifting applications requiring reliable operation, precise load positioning, and variable-speed control.

With a rated lifting capacity of 1.5 metric tons and a single chain reeve, the LC2A015SI combines compact dimensions with high lifting and lowering speeds for industrial material handling applications.

The LC2A015SI is available in hook-mount, industrial trolley, wide-beam trolley, Oil & Gas trolley, and low-profile configurations, providing flexibility for different beam widths, installation requirements, and restricted-headroom applications.

The Liftchain Air Hoist platform is engineered for demanding operating environments and provides pneumatic operation, controlled load movement, and durable performance for industrial lifting requirements.

Typical applications include oil and gas operations, offshore and marine facilities, refineries, petrochemical plants, manufacturing facilities, shipyards, maintenance operations, and other industrial lifting environments.
