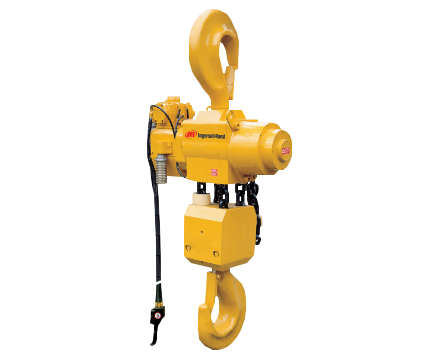

Ingersoll Rand LC2A080DI 8 Ton Liftchain Air Hoist

Ingersoll Rand LC2A010SI 1 Ton Liftchain Air Hoist

Part #: LC2A080DI
Model: LC2A080DI
Manufacturer: Ingersoll Rand
Category: Air Hoists
Key Specifications

Part Number: LC2A080DI
Model: LC2A080DI
Manufacturer: Ingersoll Rand
Product Type: Pneumatic Air Chain Hoist
Series: Liftchain
Lifting Capacity: 8 Metric Tons
Reeves of Chain: 2
Power Source: Compressed Air
Hook-Mount Headroom: 807 mm (31.8 in)
Hoist Weight with 3 m Chain: 118 kg (260 lb)
Weight per Additional Meter of Lift: 7.6 kg (16.8 lb)
Oil & Gas Trolley Headroom: 815 mm (32.1 in)
Oil & Gas Trolley Flange Adjustment: 100–310 mm (3.9–12.2 in)
Oil & Gas Trolley Weight: 142 kg (313 lb)
Low Profile Headroom: 590 mm (23.2 in)
Low Profile Flange Adjustment: 120–310 mm (4.7–12.2 in)
Operating Type: Pneumatic
Configuration: Hook Mount / Oil & Gas Trolley / Low Profile
Application: Oil & Gas / Offshore / Marine / Refineries / Petrochemical / Heavy Industrial
Availability: Contact for Availability

Overview

Ingersoll Rand LC2A080DI 8-ton pneumatic Liftchain air hoist for oil and gas, offshore, marine and heavy industrial lifting applications.

Technical Specifications

Product Type: Pneumatic Air Chain Hoist
Manufacturer: Ingersoll Rand
Model: LC2A080DI
Series: Liftchain
Lifting Capacity: 8 Metric Tons
Reeves of Chain: 2
Power Source: Compressed Air
Full-Load Lifting Speed: 1.8 m/min
No-Load Lifting Speed: 3.5 m/min
Lowering Speed at Rated Load: 2.2 m/min
Required Air Flow: 4.4 m³/min
Air Inlet: 1 in
Sound Pressure Level: 76 dB(A)
Hook-Mount Headroom: 807 mm (31.8 in)
Hoist Weight with 3 m Chain: 118 kg (260 lb)
Weight per Additional Meter of Lift: 7.6 kg (16.8 lb)
Oil & Gas Trolley Headroom: 815 mm (32.1 in)
Oil & Gas Trolley Flange Adjustment: 100–310 mm (3.9–12.2 in)
Oil & Gas Trolley Weight: 142 kg (313 lb)
Low Profile Headroom: 590 mm (23.2 in)
Low Profile Flange Adjustment: 120–310 mm (4.7–12.2 in)
Load Chain: Grade 80 Calibrated Corrosion-Resistant Load Chain
Construction: Rugged All-Steel
Brake: Automatic Multi-Disc Fail-Safe Brake
Speed Control: Variable-Speed Pneumatic Operation
Limit Protection: Integrated Upper and Lower Limit Switches
Hazardous Area Capability: ATEX Zone 2 Standard / Zone 1 Package Optional
Mechanical Classification: FEM 1 Bm / ISO M3
Typical Applications: Oil & Gas / Offshore / Marine / Refineries / Petrochemical / Heavy Industry
Availability: Contact for Availability

Ingersoll Rand LC2A080DI 8 Ton Liftchain Air Hoist Overview

The Ingersoll Rand LC2A080DI Liftchain Air Hoist is a heavy-duty pneumatic chain hoist designed for demanding industrial lifting applications requiring dependable operation, precise load positioning, and controlled lifting performance.

With a rated lifting capacity of 8 metric tons and two chain reeves, the LC2A080DI provides a versatile solution for industrial, oil and gas, marine, and heavy-duty material handling applications.

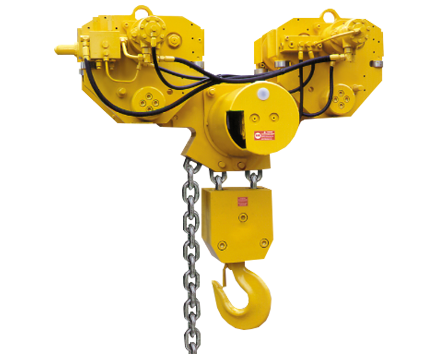

The LC2A080DI is available in hook-mount, Oil & Gas trolley, and low-profile configurations, allowing the hoist to accommodate different installation, beam, and headroom requirements.

The Liftchain Air Hoist platform combines rugged all-steel construction, corrosion-resistant load chain, automatic braking, variable-speed pneumatic operation, and integrated upper and lower limit protection.

Typical applications include oil and gas operations, offshore and marine facilities, refineries, petrochemical plants, shipyards, maintenance operations, and other demanding industrial lifting environments.
