Ingersoll Rand LC2A180TI 18 Ton Liftchain Air Hoist

Ingersoll Rand LC2A015SI 1.5 Ton Liftchain Air Hoist

Part #: LC2A180TI
Model: LC2A180TI
Manufacturer: Ingersoll Rand
Category: Air Hoists
Key Specifications

Part Number: LC2A180TI
Model: LC2A180TI
Manufacturer: Ingersoll Rand
Product Type: Pneumatic Air Chain Hoist
Series: Liftchain
Lifting Capacity: 18 Metric Tons
Reeves of Chain: 3
Power Source: Compressed Air
Hook-Mount Headroom: 1,063 mm (41.9 in)
Hoist Weight with 3 m Chain: 277 kg (611 lb)
Weight per Additional Meter of Lift: 17.1 kg (37.7 lb)
Oil & Gas Trolley Headroom: 1,195 mm (47.1 in)
Oil & Gas Trolley Flange Adjustment: 140–310 mm (5.5–12.2 in)
Oil & Gas Trolley Weight: 375 kg (826 lb)
Low Profile Headroom: 730 mm (28.7 in)
Low Profile Flange Adjustment: 210–310 mm (8.3–12.2 in)
Operating Type: Pneumatic
Application: Oil & Gas / Offshore / Marine / Heavy Industrial
Availability: Contact for Availability

Overview

Ingersoll Rand LC2A180TI 18-ton pneumatic Liftchain air hoist for oil and gas, offshore, marine and heavy industrial lifting applications.

Technical Specifications

Product Type: Pneumatic Air Chain Hoist
Manufacturer: Ingersoll Rand
Model: LC2A180TI
Series: Liftchain
Lifting Capacity: 18 Metric Tons
Reeves of Chain: 3
Power Source: Compressed Air
Working Air Pressure: 6.3 bar (90 psi)
Full-Load Lifting Speed: 0.7 m/min (2.3 fpm)
No-Load Lifting Speed: 1.2 m/min (3.9 fpm)
Lowering Speed at Rated Load: 0.9 m/min (3.0 fpm)
Required Air Flow: 5 m³/min (177 cfm)
Hook-Mount Headroom: 1,063 mm (41.9 in)
Hoist Weight with 3 m Chain: 277 kg (611 lb)
Weight per Additional Meter of Lift: 17.1 kg (37.7 lb)
Oil & Gas Trolley Headroom: 1,195 mm (47.1 in)
Oil & Gas Trolley Flange Adjustment: 140–310 mm (5.5–12.2 in)
Oil & Gas Trolley Weight: 375 kg (826 lb)
Low Profile Headroom: 730 mm (28.7 in)
Low Profile Flange Adjustment: 210–310 mm (8.3–12.2 in)
Low Profile Trolley Weight: 413 kg (911 lb)
Speed Control: Variable-Speed Pneumatic Operation
Configuration: Hook Mount / Oil & Gas Trolley / Low Profile
Typical Applications: Oil & Gas / Offshore / Marine / Refineries / Petrochemical / Heavy Industry
Availability: Contact for Availability

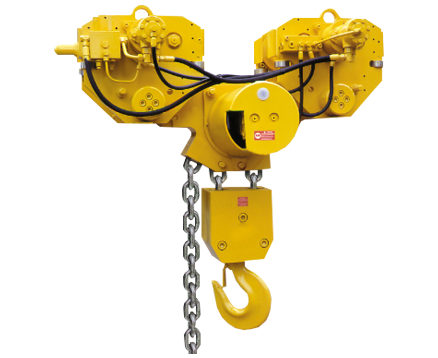

Ingersoll Rand LC2A180TI 18 Ton Liftchain Air Hoist

The Ingersoll Rand LC2A180TI Liftchain Air Hoist is a heavy-duty pneumatic chain hoist engineered for demanding industrial lifting applications requiring controlled load movement, reliable performance, and durable operation.

With a rated lifting capacity of 18 metric tons and three chain reeves, the LC2A180TI provides a versatile solution for medium-to-high capacity industrial lifting requirements.

The LC2A180TI is available in hook-mount, Oil & Gas trolley, and low-profile configurations, allowing the hoist to be adapted to different installation and headroom requirements.

The Liftchain platform provides variable-speed pneumatic operation, precise load positioning, rugged construction, and dependable performance in demanding industrial environments.

Typical applications include oil and gas operations, offshore and marine facilities, refineries, petrochemical plants, shipyards, maintenance operations, and other heavy industrial lifting applications.
