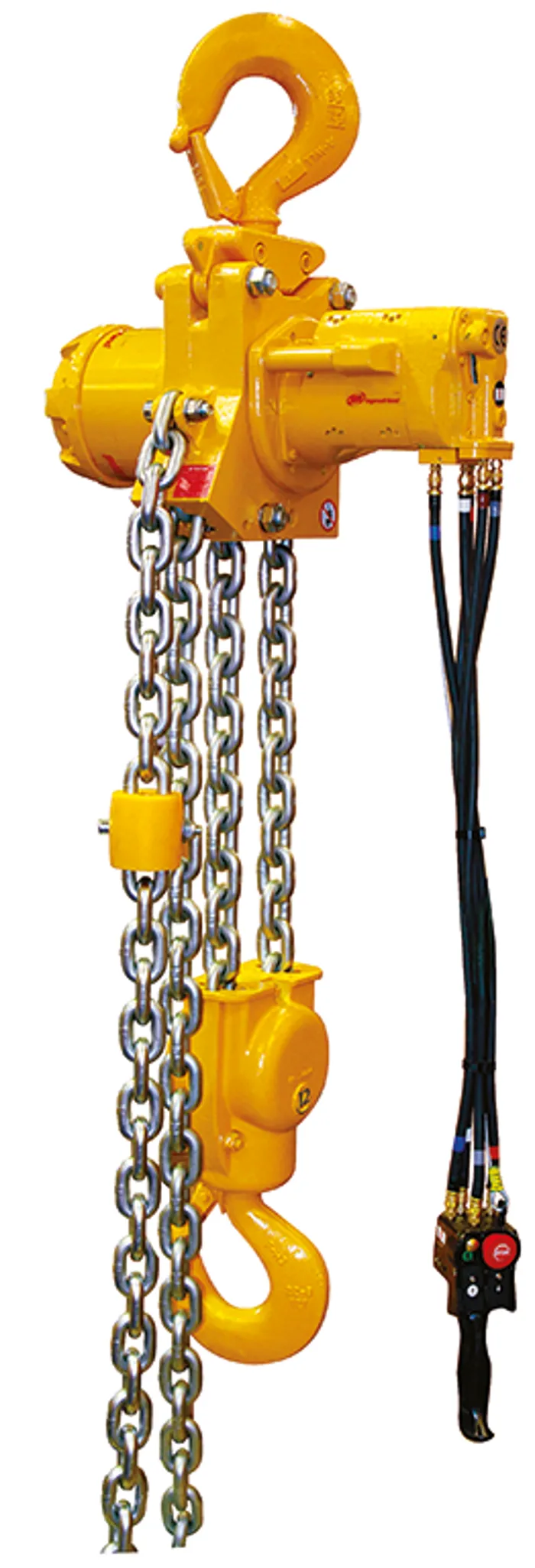

Ingersoll Rand LCA1000QI 100 Ton Liftchain Air Hoist

Ingersoll Rand LCA1000QI 100 Ton Liftchain Air Hoist

Part #: LCA1000QI
Model: LCA1000QI
Manufacturer: Ingersoll Rand
Category: Air Hoists
Key Specifications

Part Number: LCA1000QI
Model: LCA1000QI
Manufacturer: Ingersoll Rand
Product Type: Pneumatic Air Chain Hoist
Series: Liftchain
Lifting Capacity: 100 Metric Tons
Reeves of Chain: 4
Power Source: Compressed Air
Hook-Mount Headroom: 2,455 mm (96.7 in)
Hoist Weight with 3 m Chain: 2,200 kg (4,850 lb)
Weight per Additional Meter of Lift: 98.0 kg (216.1 lb)
Oil & Gas Trolley Headroom: 1,901 mm (74.8 in)
Oil & Gas Trolley Flange Adjustment: 160–310 mm (6.3–12.2 in)
Oil & Gas Trolley Weight: 2,500 kg (5,512 lb)
Operating Type: Pneumatic
Configuration: Hook Mount / Oil & Gas Trolley Available
Application: Oil & Gas / Offshore / Marine / Heavy Industrial
Availability: Contact for Availability

Overview

Ingersoll Rand LCA1000QI 100-ton pneumatic Liftchain air hoist for high-capacity oil and gas, offshore, marine and heavy industrial lifting applications.

Technical Specifications

Product Type: Pneumatic Air Chain Hoist
Manufacturer: Ingersoll Rand
Model: LCA1000QI
Series: Liftchain
Lifting Capacity: 100 Metric Tons
Reeves of Chain: 4
Power Source: Compressed Air
Working Air Pressure: 6.3 bar (90 psi)
Full-Load Lifting Speed: 0.3 m/min (1.0 fpm)
No-Load Lifting Speed: 0.5 m/min (1.6 fpm)
Lowering Speed at Rated Load: 0.5 m/min (1.6 fpm)
Required Air Flow: 10 m³/min (353 cfm)
Hook-Mount Headroom: 2,455 mm (96.7 in)
Hoist Weight with 3 m Chain: 2,200 kg (4,850 lb)
Weight per Additional Meter of Lift: 98.0 kg (216.1 lb)
Oil & Gas Trolley Headroom: 1,901 mm (74.8 in)
Oil & Gas Trolley Flange Adjustment: 160–310 mm (6.3–12.2 in)
Oil & Gas Trolley Weight: 2,500 kg (5,512 lb)
Speed Control: Variable-Speed Pneumatic Operation
Configuration: Hook Mount / Oil & Gas Trolley
Typical Applications: Oil & Gas / Offshore / Marine / Refining / Petrochemical / Heavy Industry
Availability: Contact for Availability

Ingersoll Rand LCA1000QI 100 Ton Liftchain Air Hoist

The Ingersoll Rand LCA1000QI Liftchain Air Hoist is a high-capacity pneumatic chain hoist engineered for demanding industrial lifting applications requiring reliable operation, controlled load movement, and exceptional lifting capacity.

With a rated lifting capacity of 100 metric tons and four chain reeves, the LCA1000QI represents one of the highest-capacity models in the Ingersoll Rand Liftchain Air Hoist range.

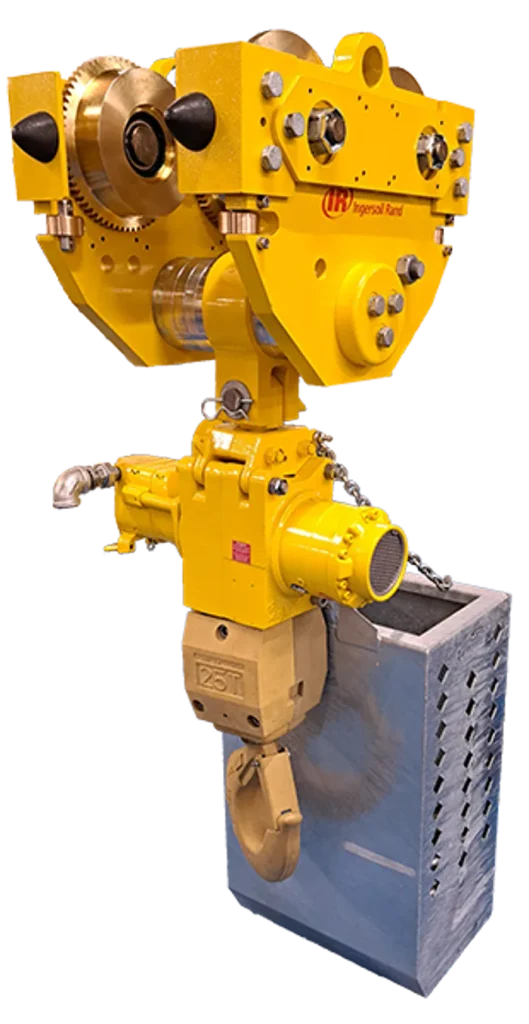

The model is available in hook-mount configuration and with an Oil & Gas trolley, providing flexibility for heavy lifting applications in demanding industrial environments.

The Liftchain platform is designed for high duty-cycle operation, variable-speed control, precise load positioning, and severe operating environments.

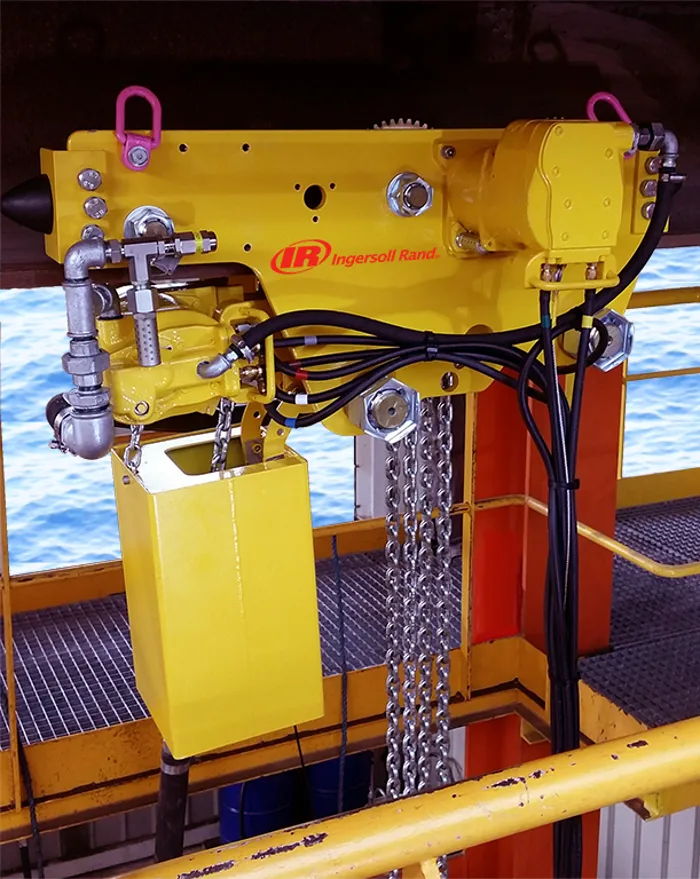

Typical applications include oil and gas operations, offshore facilities, marine installations, refineries, petrochemical plants, shipyards, heavy industrial maintenance, and other high-capacity lifting applications.
