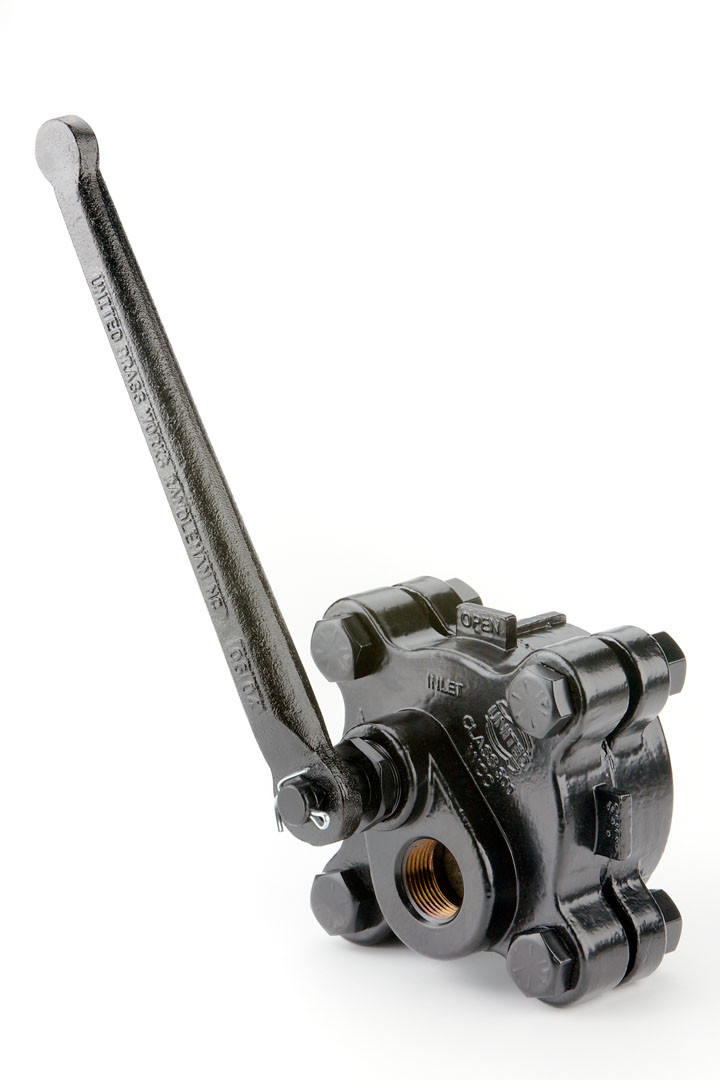

United Brass Works 425 2″ Quick-Opening Blow-Off Valve

United Brass Works 425 2 inch quick-opening blow-off valve

Part #: 425
Model: 425
Manufacturer: United Brass Works
Category: Boiler Parts & Accessories
Key Specifications

Model: 425
Size: 2 in.
Valve Type: Quick-Opening Blow-Off Valve
Pressure Class: Class 300
Connection: Threaded Ends
Body Material: Cast Steel ASTM A216 WCC
Working Steam Pressure: 600 PSI @ 500°F
Maximum Boiler Blow-Off Pressure: 480 PSI
Standard: ANSI/ASME B16.34
Operation: Quick-Opening Knife Gate

Overview

United Brass Works 425 Overview The United Brass Works Model 425 Quick-Opening Blow-Off Valve is designed for boiler blowdown applications requiring fast and reliable discharge. This 2-inch Class 300 valve features a steel body, threaded end connections, and a quick-opening knife-gate design. Its hardened stainless-steel seat and disc provide durability for demanding steam service. The…

Technical Specifications
  • Model: 425
  • Nominal Size: 2 in.
  • Valve Design: Quick-Opening Knife Gate Blow-Off Valve
  • Pressure Class: Class 300
  • End Connections: Threaded
  • Body: ASTM A216 WCC Steel
  • Cover: ASTM A216 WCC Steel
  • Disc: 440C Stainless Steel
  • Seat/Disc Hardness: Rockwell 60
  • Stem: 410 Stainless Steel
  • Disc Spring: 17-7 Stainless Steel
  • Packing: Graphite
  • Handle: ASTM A216 WCC Steel
  • Body Bolts: Grade 8 Steel
  • Working Steam Pressure: 600 PSI @ 500°F
  • Pressure Rating at 100°F: 740 PSI
  • Maximum Boiler Blow-Off Pressure: 480 PSI
  • Pressure Testing: 100% Pressure Tested
  • Face-to-Face Dimension: 4.80 in.
  • Approx. Weight: 46 lb
  • Standard: ANSI/ASME B16.34
  • Application: Boiler blowdown / scale service
  • Coating: High-temperature corrosion-resistant coating
